352-001 Real Exam

Author: Raul Mass
by Raul Mass
Posted: Mar 28, 2017

Question: 1

A company plans to include Nonstop Forwarding and Bidirectional Forwarding Detection as a part of their network redundancy plan. In which two ways do NSF and BFD work together when different hardware platforms are compared? (Choose two.)

A. During supervisor engine or routing engine failover, the NSF feature will always ensure that the BFD at the peer router will not trigger a link down independent of the used hardware platform.

B. At some hardware platforms, BFD and NSF are not supported together. During supervisor engine or routing engine failover, the BFD at the peer router will trigger a link down.

C. To ensure that BFD at the peer router will not trigger a link down during NSF, the BFD packets must be processed fast enough, and, during supervisor engine or routing engine failover, by processing the BFD independent from the supervisor engine or routing engine.

D. Because BFD is always processed at the line cards (not at the supervisor engine or routing engine), a supervisor engine or routing engine failover will not affect the BFD peer router.

E. Because BFD is always processed at the supervisor engine or routing engine, a supervisor engine or routing engine failover will always trigger a link down at the peer router.

Answer: B, C

Question: 2

Refer to the exhibit.

A service provider would like to use Ethernet OAM to detect end-to-end connectivity failures between SP-SW1 and SP-SW2. In which two of these ways can you design this solution? (Choose two.)

A. Enable Y.1731 Connectivity Fault Management on the SP switches.

B. E-LMI PDUs must be forwarded over VPLS.

C. Cisco Discovery Protocol PDUs must be forwarded over the VPLS.

D. Use upward maintenance endpoints on the SP switches.

E. Enable IEEE 802.1ag Connectivity Fault Management on the SP switches.

Answer: D, E

Question: 3

A network design shows two routers directly connected to an Ethernet switch using optical connections. There is an OSPF adjacency between the routers. In this design, which solution will ensure that interface down detection is reported as quickly as possible to the IGP?

A. optimized OSPF SPF timers

B. Bidirectional Forwarding Detection

C. automatic protection switching

D. optimized OSPF LSA timers

E. Ethernet OAM CFM monitoring

Answer: B

Question: 4

A network designer is working with a company to improve convergence at the Layer 2 control plane and decides to use LACP. Which of these components does LACP use to create the system ID?

A. LACP system priority and switch MAC address

B. LACP port priority and switch MAC address

C. LACP port priority and port number

D. LACP system priority and port number

Answer: A

Question: 5

Refer to the exhibit.

You are designing a spanning-tree network for a small campus. Which two of these options would result in a trouble-free spanning-tree network design? (Choose two.)

A. Convert all ports to trunk ports, prune off the VLANs that you do not require, and minimize the number of blocking ports.

B. Introduce Layer 3 VLANs (SVIs) and prune off the VLANs that you do not require.

C. Convert all the ports to trunk and enable BackboneFast.

D. Convert all the ports to trunk and enable UplinkFast between all the links.

Answer: A, B

Question: 6

A network designer is redesigning an enterprise campus network to ensure that Ethernet switches proactively attempt to reconnect after a fiber cut. In the design, they will have to address areas where fiber cuts exist on campus from past troubleshooting, where a single fiber is disconnected in the fiber pair, leading to looping. Which feature could be implemented in the design to allow the Spanning Tree Protocol on the switches to be protected?

A. loop guard

B. UniDirectional Link Detection

C. UniDirectional Link Detection aggressive mode

D. root guard

Answer: C

Question: 7

A switched network is being designed to support a manufacturing factory. Due to cost constraints, fiber-based connectivity is not an option. Which design allows for a stable network when there is a risk of interference from the manufacturing hardware in use on the factory floor?

A. Design the network to include UDLD to detect unidirectional links and take them out of service.

B. Design the network to include EtherChannel bundles to prevent a single-link failure from taking down a switch interconnection point.

C. Design the network to include loop guard to prevent a loop in the switched network when a link has too much interference.

D. Design the network to include BackboneFast on all devices to accelerate failure convergence times.

Answer: A

Question: 8

Refer to the exhibit.

If IEEE 802.1w is in use for this network design, what are two locations where spanning-tree root can be placed to ensure the least-disruptive Layer 2 failover for clients within VLANs 3 and 4? (Choose two.)

A. Switch A

B. Switch B

C. Switch C

D. Switch D

Answer: C, D

Question: 9

A service provider has a Resilient Ethernet Protocol ring running as a metro backbone between its locations in one city. A customer wants to connect one site with one box redundant to the Resilient Ethernet Protocol ring at two different service provider locations. How can this be done without producing any Layer 2 loops within the network design?

A. Spanning tree at the service provider side only must be enabled.

B. Spanning tree at the customer side only must be enabled.

C. Flex Links at the service provider side only must be enabled.

D. Flex Links at the customer side only must be enabled.

E. EtherChannel at the service provider side and the customer side must be enabled.

F. Spanning tree at the service provider side and the customer side must be enabled.

G. Flex Links at the service provider side and the customer side must be enabled.

Answer: D

Question: 10

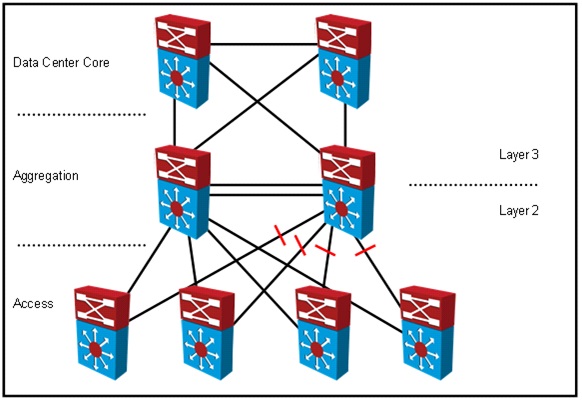

Refer to the exhibit.

Your company designed a network to allow server VLANs in a data center to span all access switches. In the design, Layer 3 VLAN interfaces and HSRP are configured on the aggregation switches. In which three ways should the design of the STP domain be optimized for server and application performance? (Choose three.)

A. Use loop guard on access ports.

B. Use PortFast on access ports.

C. Use root guard on access ports.

D. Align Layer 2 and Layer 3 forwarding paths.

E. Use BPDU Skew Detection on access ports.

F. Explicitly determine root and backup root bridges.

Answer: B, D, F

Question: 11

You have created a network design that has two point-to-point Metro Ethernet circuits extending a single production VLAN between two data centers. Under normal circumstances, one circuit will carry traffic and spanning tree will block the other. If the company wants you to make use of both circuits to carry production traffic, which two technologies and features will you investigate to integrate into your network design? (Choose two.)

A. EtherChannel

B. MST

C. Multichassis EtherChannel

D. PVST+

Answer: A, C

Question: 12

Voice traffic between two campus enterprise networks is growing. The network designers decide to add a second 10-Mb Metro Ethernet service parallel to their original 10-Mb service in order to provide more bandwidth and diversity. The QoS profile will be the same on the new 10-Mb service due to the voice stability on the first Metro Ethernet link. When the second link is added to the OSPF domain, which traffic design consideration would have the most impact on the voice traffic when both links are active?

A. per-destination IP address basis

B. per-flow basis

C. per-packet basis

D. per-source IP address basis

Answer: C

Question: 13

You work as a network designer for a company that is replacing their Frame Relay WAN with an MPLS VPN service, where the PE-to-CE routing protocol is BGP. The company has 3000 routes in their distribution routers, and they would like to advertise their access routers through the MPLS network. Their service provider, however, only supports 1000 prefixes per VRF. Which two design solutions can be applied to ensure that your access routers will be able to reach all devices in your network? (Choose two.)

A. Use prefix lists on your distribution routers to control which routes are sent to the MPLS network.

B. On your distribution routers, configure null routes and aggregate routes for the prefixes in your network.

C. Configure your distribution routers to send a default route to the MPLS network.

D. Summarize the routes on the MPLS WAN interfaces of your distribution routers.

Answer: B, C

Question: 14

You are designing a network that will run EIGRP over a Metro Ethernet service that does not employ a link-loss technology. What will be the impact on convergence if there is a break in the end-to-end Layer 2 connectivity within the service provider network?

A. The routers will immediately lose their adjacencies and converge.

B. The routing protocol will not converge until the hold timers have expired.

C. The switch ports connected to the router will go down and the routers will immediately converge.

D. The VLAN on the switches will go inactive, the ports associated on the switch will go down, and the routers will immediately converge.

Answer: B

Question: 15

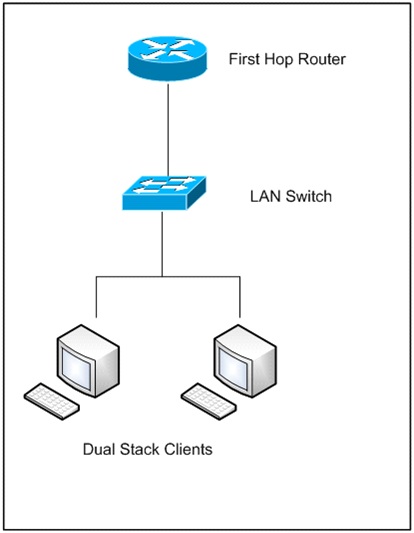

Refer to the exhibit.

Acme Corporation hired you as a network designer to upgrade their network so that it supports IPv4 and IPv6 multicast. Which two protocols are needed on the LAN switch? (Choose two.)

A. PIM sparse mode

B. IGMP snooping

C. PIM snooping

D. Source Specific Multicast

E. MLD snooping

Answer: B, E
