300-115 PDF Training Guides

Author: Raul Mass
by Raul Mass
Posted: May 11, 2017

Question: 1

What is the maximum number of switches that can be stacked using Cisco StackWise?

A. 4

B. 5

C. 8

D. 9

E. 10

F. 13

Answer: D

Question: 2

A network engineer wants to add a new switch to an existing switch stack. Which configuration must be added to the new switch before it can be added to the switch stack?

A. No configuration must be added.

B. stack ID

C. IP address

D. VLAN information

E. VTP information

Answer: A

Question: 3

What percentage of bandwidth is reduced when a stack cable is broken?

A. 0

B. 25

C. 50

D. 75

E. 100

Answer: C

Question: 4

Refer to the exhibit.

Which set of configurations will result in all ports on both switches successfully bundling into an EtherChannel?

A. switch1

channel-group 1 mode active

switch2

channel-group 1 mode auto

B. switch1

channel-group 1 mode desirable

switch2

channel-group 1 mode passive

C. switch1

channel-group 1 mode on

switch2

channel-group 1 mode auto

D. switch1

channel-group 1 mode desirable

switch2

channel-group 1 mode auto

Answer: D

Question: 5

Refer to the exhibit.

How can the traffic that is mirrored out the GigabitEthernet0/48 port be limited to only traffic that is received or transmitted in VLAN 10 on the GigabitEthernet0/1 port?

A. Change the configuration for GigabitEthernet0/48 so that it is a member of VLAN 10.

B. Add an access list to GigabitEthernet0/48 to filter out traffic that is not in VLAN 10.

C. Apply the monitor session filter globally to allow only traffic from VLAN 10.

D. Change the monitor session source to VLAN 10 instead of the physical interface.

Answer: C

Question: 6

Refer to the exhibit.

A network engineer wants to analyze all incoming and outgoing packets for an interface that is connected to an access switch. Which three items must be configured to mirror traffic to a packet sniffer that is connected to the distribution switch? (Choose three.)

A. A monitor session on the distribution switch with a physical interface as the source and the remote SPAN VLAN as the destination

B. A remote SPAN VLAN on the distribution and access layer switch

C. A monitor session on the access switch with a physical interface source and the remote SPAN VLAN as the destination

D. A monitor session on the distribution switch with a remote SPAN VLAN as the source and physical interface as the destination

E. A monitor session on the access switch with a remote SPAN VLAN source and the physical interface as the destination

F. A monitor session on the distribution switch with a physical interface as the source and a physical interface as the destination

Answer: B, C, D

Question: 7

After an EtherChannel is configured between two Cisco switches, interface port channel 1 is in the down/down state. Switch A is configured with channel-group 1 mode active, while Switch B is configured with channel-group 1 mode desirable. Why is the EtherChannel bundle not working?

A. The switches are using mismatched EtherChannel negotiation modes.

B. The switch ports are not configured in trunking mode.

C. LACP priority must be configured on both switches.

D. The channel group identifier must be different for Switch A and Switch B.

Answer: A

Question: 8

An EtherChannel bundle has been established between a Cisco switch and a corporate web server. The network administrator noticed that only one of the EtherChannel links is being utilized to reach the web server. What should be done on the Cisco switch to allow for better EtherChannel utilization to the corporate web server?

A. Enable Cisco Express Forwarding to allow for more effective traffic sharing over the EtherChannel bundle.

B. Adjust the EtherChannel load-balancing method based on destination IP addresses.

C. Disable spanning tree on all interfaces that are participating in the EtherChannel bundle.

D. Use link-state tracking to allow for improved load balancing of traffic upon link failure to the server.

E. Adjust the EtherChannel load-balancing method based on source IP addresses.

Answer: E

Question: 9

Interface FastEthernet0/1 is configured as a trunk interface that allows all VLANs. This command is configured globally:

monitor session 2 filter vlan 1 - 8, 39, 52

What is the result of the implemented command?

A. All VLAN traffic is sent to the SPAN destination interface.

B. Traffic from VLAN 4 is not sent to the SPAN destination interface.

C. Filtering a trunked SPAN port effectively disables SPAN operations for all VLANs.

D. The trunk's native VLAN must be changed to something other than VLAN 1.

E. Traffic from VLANs 1 to 8, 39, and 52 is replicated to the SPAN destination port.

Answer: E

Question: 10

A network engineer notices inconsistent Cisco Discovery Protocol neighbors according to the diagram that is provided. The engineer notices only a single neighbor that uses Cisco Discovery Protocol, but it has several routing neighbor relationships. What would cause the output to show only the single neighbor?

A. The routers are connected via a Layer 2 switch.

B. IP routing is disabled on neighboring devices.

C. Cisco Express Forwarding is enabled locally.

D. Cisco Discovery Protocol advertisements are inconsistent between the local and remote devices.

Answer: A

Question: 11

After the implementation of several different types of switches from different vendors, a network engineer notices that directly connected devices that use Cisco Discovery Protocol are not visible. Which vendor-neutral protocol could be used to resolve this issue?

A. Local Area Mobility

B. Link Layer Discovery Protocol

C. NetFlow

D. Directed Response Protocol

Answer: B

Question: 12

Several new switches have been added to the existing network as VTP clients. All of the new switches have been configured with the same VTP domain, password, and version. However, VLANs are not passing from the VTP server (existing network) to the VTP clients. What must be done to fix this?

A. Remove the VTP domain name from all switches with "null" and then replace it with the new domain name.

B. Configure a different native VLAN on all new switches that are configured as VTP clients.

C. Provision one of the new switches to be the VTP server and duplicate information from the existing network.

D. Ensure that all switch interconnects are configured as trunks to allow VTP information to be transferred.

Answer: D

Question: 13

After implementing VTP, the extended VLANs are not being propagated to other VTP switches. What should be configured for extended VLANs?

A. VTP does not support extended VLANs and should be manually added to all switches.

B. Enable VTP version 3, which supports extended VLAN propagation.

C. VTP authentication is required when using extended VLANs because of their ability to cause network instability.

D. Ensure that all switches run the same Cisco IOS version. Extended VLANs will not propagate to different IOS versions when extended VLANs are in use.

Answer: B

Question: 14

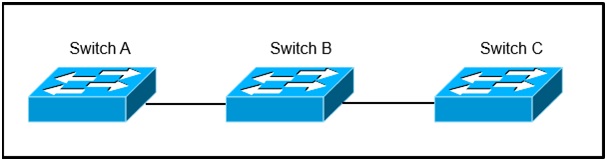

Refer to the exhibit.

Switch A, B, and C are trunked together and have been properly configured for VTP. Switch C receives VLAN information from the VTP server Switch A, but Switch B does not receive any VLAN information. What is the most probable cause of this behavior?

A. Switch B is configured in transparent mode.

B. Switch B is configured with an access port to Switch A, while Switch C is configured with a trunk port to Switch B.

C. The VTP revision number of the Switch B is higher than that of Switch A.

D. The trunk between Switch A and Switch B is misconfigured.

Answer: A

Question: 15

Refer to the exhibit.

Switch A, B, and C are trunked together and have been properly configured for VTP. Switch B has all VLANs, but Switch C is not receiving traffic from certain VLANs. What would cause this issue?

A. A VTP authentication mismatch occurred between Switch A and Switch B.

B. The VTP revision number of Switch B is higher than that of Switch A.

C. VTP pruning is configured globally on all switches and it removed VLANs from the trunk interface that is connected to Switch C.

D. The trunk between Switch A and Switch B is misconfigured.

Answer: C

Question: 16

After the recent upgrade of the switching infrastructure, the network engineer notices that the port roles that were once "blocking" are now defined as "alternate" and "backup." What is the reason for this change?

A. The new switches are using RSTP instead of legacy IEEE 802.1D STP.

B. IEEE 802.1D STP and PortFast have been configured by default on all newly implemented Cisco Catalyst switches.

C. The administrator has defined the switch as the root in the STP domain.

D. The port roles have been adjusted based on the interface bandwidth and timers of the new Cisco Catalyst switches.

Answer: A

Question: 17

An administrator recently configured all ports for rapid transition using PortFast. After testing, it has been determined that several ports are not transitioning as they should. What is the reason for this?

A. RSTP has been enabled per interface and not globally.

B. The STP root bridge selection is forcing key ports to remain in non-rapid transitioning mode.

C. STP is unable to achieve rapid transition for trunk links.

D. The switch does not have the processing power to ensure rapid transition for all ports.

Answer: C

Question: 18

Which technique automatically limits VLAN traffic to only the switches that require it?

A. access lists

B. DTP in nonegotiate

C. VTP pruning

D. PBR

Answer: C

Question: 19

What effect does the mac address-table aging-time 180 command have on the MAC address-table?

A. This is how long a dynamic MAC address will remain in the CAM table.

B. The MAC address-table will be flushed every 3 minutes.

C. The default timeout period will be 360 seconds.

D. ARP requests will be processed less frequently by the switch.

E. The MAC address-table will hold addresses 180 seconds longer than the default of 10 minutes.

Answer: A

Question: 20

While working in the core network building, a technician accidently bumps the fiber connection between two core switches and damages one of the pairs of fiber. As designed, the link was placed into a non-forwarding state due to a fault with UDLD. After the damaged cable was replaced, the link did not recover. What solution allows the network switch to automatically recover from such an issue?

A. macros

B. errdisable autorecovery

C. IP Event Dampening

D. command aliases

E. Bidirectional Forwarding Detection

Answer: B
